What is a Transient Shaper?

[jrisreal]

I don't know what a transient is, or what a transient shaper is. I hear it can make drums hit harder or something, so I wana know how it works. Did a google search and a youtube search, didn't come up with anything helpful. Thanks in advance.

[Ezzcal]

logic has one built in called Wavshaper

[jrisreal]

logic has one built in called Wavshaper

so transient shapers are the same thing as waveshapers?

[gen_]

A Transient is the first Oscillation of the start of a sound. In most cases this is the first big wave of a drum sample. A transient shaper allows you to change the ADSR volume of each hit by detecting the transient of each drum in your track and then boosting or reducing the volume over the length of your drum hit, then starting again as soon as the next hit comes through it.

In effect you can use it to make a Kick drum have more bite (by increasing its attack), a hat to ring out more loudly by increasing its sustain or a host of other stuff.

[jrisreal]

A Transient is the first Oscillation of the start of a sound. In most cases this is the first big wave of a drum sample. A transient shaper allows you to change the ADSR volume of each hit by detecting the transient of each drum in your track and then boosting or reducing the volume over the length of your drum hit, then starting again as soon as the next hit comes through it.

In effect you can use it to make a Kick drum have more bite (by increasing its attack), a hat to ring out more loudly by increasing its sustain or a host of other stuff.

so nothing I couldn't do with the ASDR in my sampler?

[ChadDub]

No, what it does is it lets you make certain parts louder. Like I'm needing to make the first millisecond of my snare loud and heavy, so I need a transient shaper. I think a compressor can do this too.

[Atac]

I always thought it was a way to isolate and saturate a certain part of a waveform.
I might be wrong though.
If I am, someone please correct me since I'm just as curious!

[Morrello]

logic has one built in called Wavshaper

Do you mean enveloper?

[Depone]

Yeah, its sculpting your dynamics. If you can imagine its doing the opposite of a compressor, but nott the same. You can add extra snap to a snare, and remove its decay/release. Really useful tool thats overlooked most of the time.

[gen_]

It's much more precision than a compressor, but can be used to do essentially the same thing. The great thing about it is, unlike you're sampler, it bases the moment it triggers itself on the sounds going through it. You can lay down a really snappy snare, jam your fave fat reverberations on it, then use the shaper to bring down the reverb tail exactly the moment before your kick comes in after!

[legend4ry]

Transient shapers are pretty self explanitory - they shape the transients, giving you more control of them.

[jrisreal]

alright good info. now I gotta find a free one. Is flux bittersweet II any good? thanks for all the help

[BassSaber]

You using FL right? FL Studio has its own one called Fruity waveshaper

Otherwise http://www.dubstepforum.com/viewtopic.p ... 04&start=0

[jrisreal]

You using FL right? FL Studio has its own one called Fruity waveshaper

Otherwise http://www.dubstepforum.com/viewtopic.p ... 04&start=0

oh wow didnt know that, thanks. and its good?

[macc]

A waveshaper isn't a transient shaper - a waveshaper is a distortion effect.

Waveshapers allow you to draw curves of input versus output, so when a certain level comes in, a certain level comes out.

Soft knee-compression style curve - http://flstudio.image-line.com/help/htm ... shaper.jpg

Hard-knee compression style curve - http://upload.wikimedia.org/wikipedia/e ... shaper.JPG

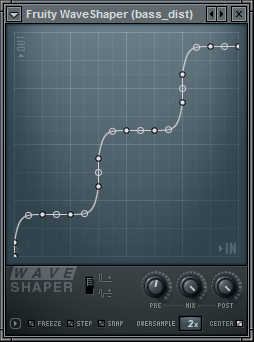

Mentalistness - http://d3vvl31cy8gagb.cloudfront.net/14 ... ss/011.png

More here - http://en.wikipedia.org/wiki/Waveshaper


A transient shaper works a bit like a compressor in that it listens to the incoming audio and then does stuff accordingly.

BUT

Unlike a compressor it doesn't listen to the level of the audio coming in. What it listens to is the rate of change of the incoming level and not the level itself. A signal that is changing faster than a set value (set fixed internally or via front panel controls) is deemed a transient. So a soft pad won't trigger it, a cymbal ping will. This is why it can impart snap on softer ghost/shuffle hits on snare drums, even though they are quieter, as it is listening to the rate of change and not the level.

Once it has decided something is a transient, that portion of the audio can be boosted/softened/whatever to provide snap, or to soften sharp stuff. Easy peasy.

[jrisreal]

A waveshaper isn't a transient shaper - a waveshaper is a distortion effect.

Waveshapers allow you to draw curves of input versus output, so when a certain level comes in, a certain level comes out.

Soft knee-compression style curve - http://flstudio.image-line.com/help/htm ... shaper.jpg

Hard-knee compression style curve - http://upload.wikimedia.org/wikipedia/e ... shaper.JPG

Mentalistness - http://d3vvl31cy8gagb.cloudfront.net/14 ... ss/011.png

More here - http://en.wikipedia.org/wiki/Waveshaper


A transient shaper works a bit like a compressor in that it listens to the incoming audio and then does stuff accordingly.

BUT

Unlike a compressor it doesn't listen to the level of the audio coming in. What it listens to is the rate of change of the incoming level and not the level itself. A signal that is changing faster than a set value (set fixed internally or via front panel controls) is deemed a transient. So a soft pad won't trigger it, a cymbal ping will. This is why it can impart snap on softer ghost/shuffle hits on snare drums, even though they are quieter, as it is listening to the rate of change and not the level.

Once it has decided something is a transient, that portion of the audio can be boosted/softened/whatever to provide snap, or to soften sharp stuff. Easy peasy.

oh gotch! Now I know exactly what a transient is, thanks for that, seriously! So fruity waveshaper isnt a transient shaper? back to bittersweet then I guess

[Electric_Head]

I don't know what a transient is, or what a transient shaper is. I hear it can make drums hit harder or something, so I wana know how it works. Did a google search and a youtube search, didn't come up with anything helpful. Thanks in advance.

Liar, liar, your pants be on fire.

2nd post on google "What’s wrong with transient shapers?"http://kimlajoie.wordpress.com/2010/04/ ... t-shapers/

"Transient shapers are processors that adjust the dynamics of a sound. Rather than changing the dynamic range like a compressor, transient shapers operate only on the initial onset of the sound – the transient. The initial smack of a drum. The plink of a piano. The pick of a guitar or bass. They don’t work with sounds that don’t have a sudden start, such as vocals, violins, or synth pads. Transient shapers can either bring out the transient – making it louder, sharper and more prominent. They can also reduce the transient – making it softer and duller."

[jrisreal]

I don't know what a transient is, or what a transient shaper is. I hear it can make drums hit harder or something, so I wana know how it works. Did a google search and a youtube search, didn't come up with anything helpful. Thanks in advance.

Lier, lier, your pants be on fire.

2nd post on google "What’s wrong with transient shapers?"http://kimlajoie.wordpress.com/2010/04/ ... t-shapers/

"Transient shapers are processors that adjust the dynamics of a sound. Rather than changing the dynamic range like a compressor, transient shapers operate only on the initial onset of the sound – the transient. The initial smack of a drum. The plink of a piano. The pick of a guitar or bass. They don’t work with sounds that don’t have a sudden start, such as vocals, violins, or synth pads. Transient shapers can either bring out the transient – making it louder, sharper and more prominent. They can also reduce the transient – making it softer and duller."

*liar* and that wasnt in my google search...im stupid

[Electric_Head]

hahaha I should have used spell checker

[Electric_Head]

oops double post
